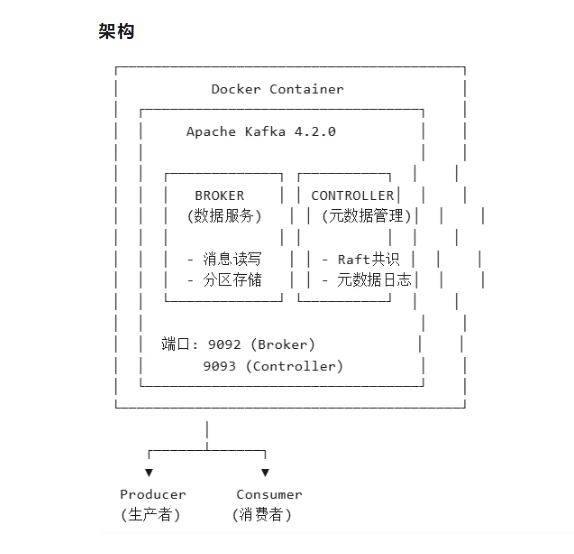

架构

环境版本

docker：27.3.1

kafka：4.2.0

docker compose部署

部署 kafka 4.2 和kafka-ui

# 创建工作目录
mkdir -p /opt/kafka
cd /opt/kafka
# 创建目录并设置权限（容器内用户 UID 为 1000)
mkdir -p ./kafka-data
sudo chown -R 1000:1000 ./kafka-data
# 创建docker-compose.yml
vim docker-compose.yml

version: '3.8'
services:
  kafka:
    image: apache/kafka:4.2.0
    container_name: kafka
    ports:
      - "9092:9092"
      - "9093:9093"

    environment:
      KAFKA_NODE_ID: 1
      KAFKA_PROCESS_ROLES: broker,controller
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9092,CONTROLLER://0.0.0.0:9093
      # 关键：容器间通信用 kafka:9092，宿主机访问用 localhost:9092
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://kafka:9092
      KAFKA_CONTROLLER_LISTENER_NAMES: CONTROLLER
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: CONTROLLER:PLAINTEXT,PLAINTEXT:PLAINTEXT
      KAFKA_CONTROLLER_QUORUM_VOTERS: 1@kafka:9093
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: 1
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: 1
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0
      KAFKA_NUM_PARTITIONS: 3
    volumes:
      - ./kafka-data:/var/lib/kafka/data
    healthcheck:
      #test: ["CMD", "kafka-broker-api-versions.sh", "--bootstrap-server", "localhost:9092"]
      test: ["CMD-SHELL", "nc -z localhost 9092 || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 5

  kafka-ui:
    image: ghcr.io/kafbat/kafka-ui:latest
    container_name: kafka-ui
    ports:
      - "8080:8080"
    environment:
      # 关键修正：BOOTSTRAPSERVERS 不是 BOOTSTRAP_SERVERS
      KAFKA_CLUSTERS_0_NAME: local-cluster
      KAFKA_CLUSTERS_0_BOOTSTRAPSERVERS: kafka:9092
      DYNAMIC_CONFIG_ENABLED: "true"
    depends_on:
      kafka:
        condition: service_healthy

启动

docker compose up -d

参考
